PRECISETECH Motor Insulation Paper Folding and Cutting Machine

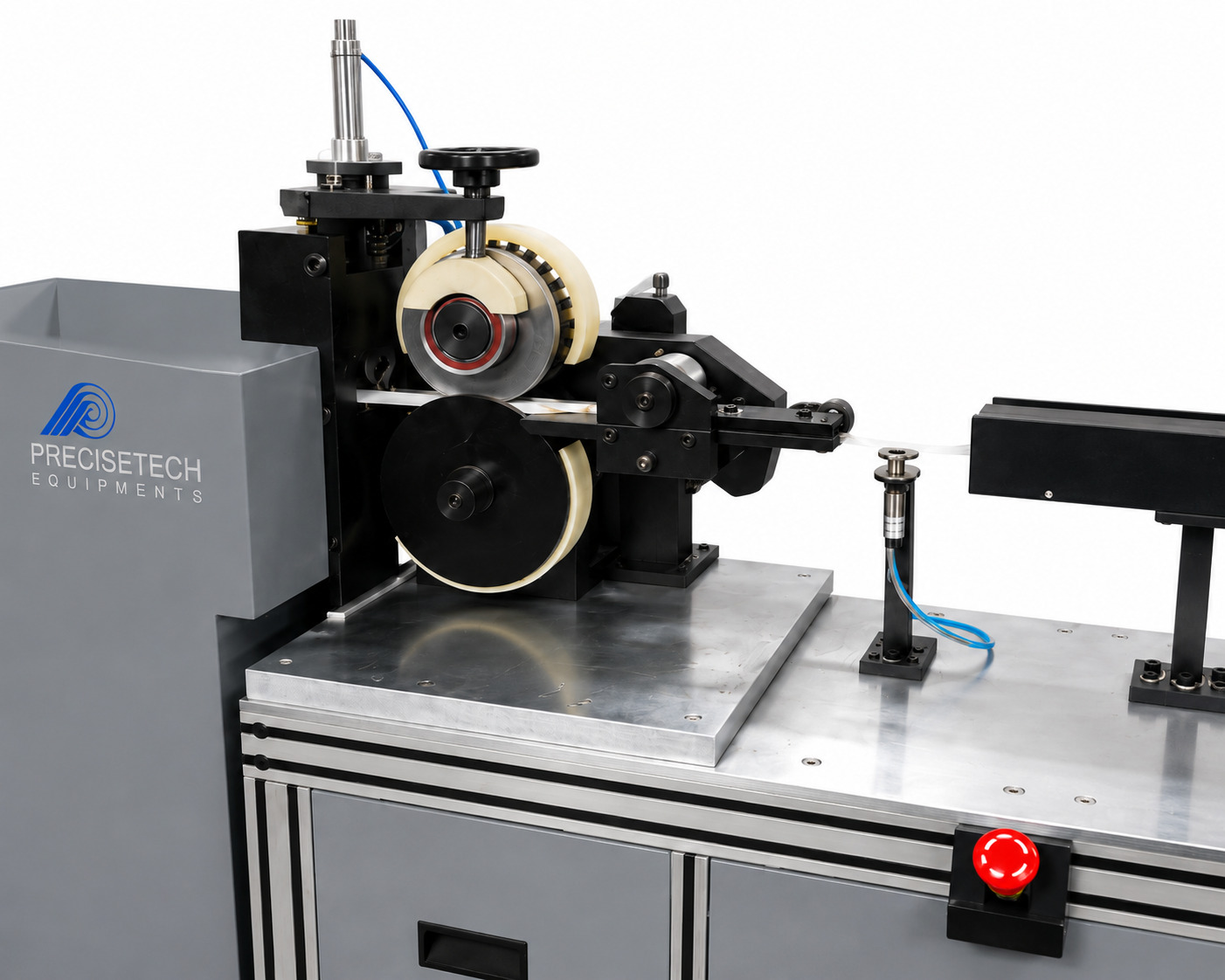

Motor insulation paper folding machine detail

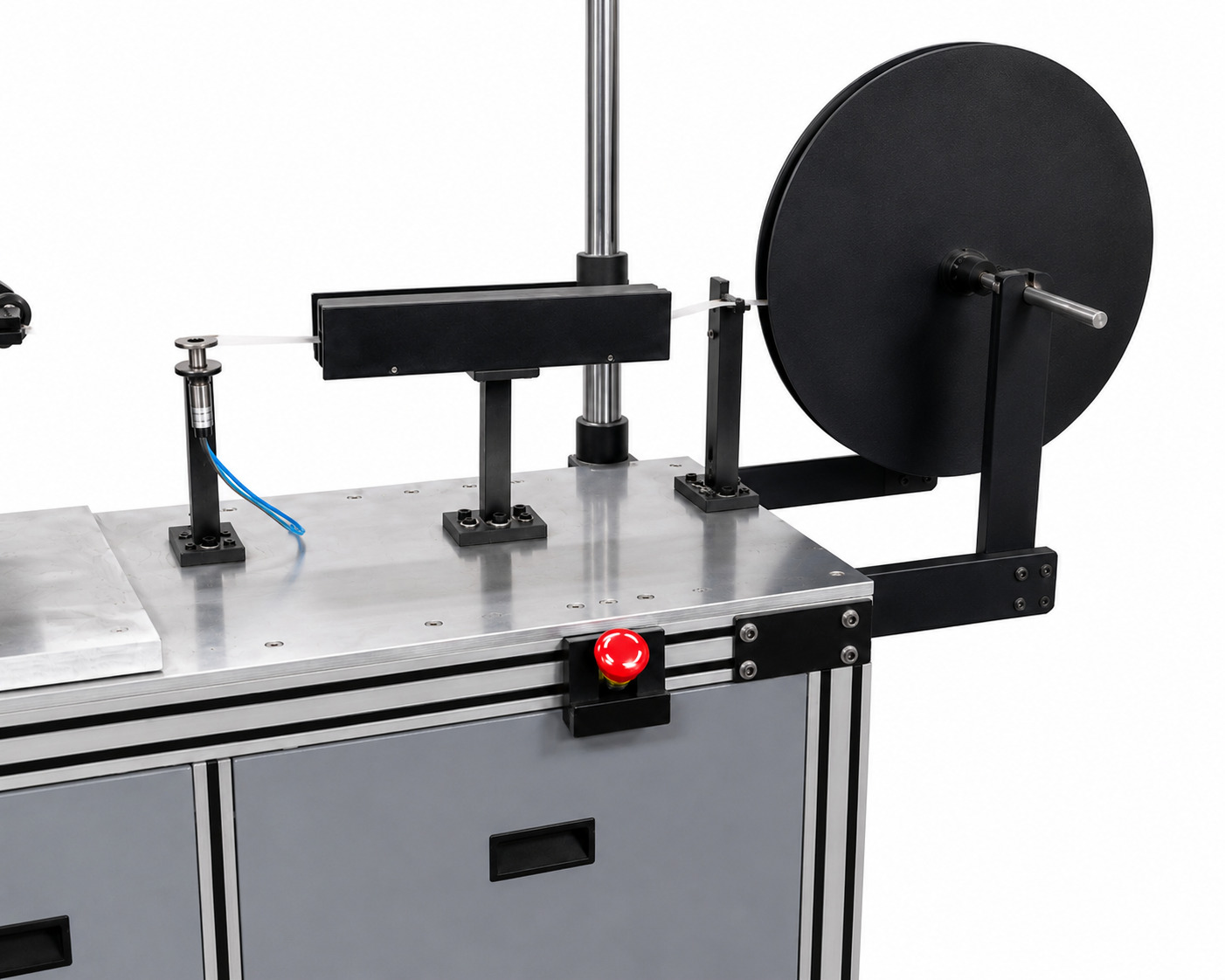

Insulation paper folding cutting process

PRECISETECH EQUIPMENTS

Motor Insulation Paper Folding & Cutting Machine

Designed specifically for motor manufacturers, this Motor Insulation Top Paper Folding & Cutting Machine performs precise paper creasing from 3mm to 20mm using interchangeable tooling — all on the same machine. It accepts paper widths ranging from 10mm (minimum) to 40mm (maximum), making it flexible for a wide range of motor insulation paper sizes. Available in both Single Phase and Three Phase power configurations. With over 6 years of dedicated manufacturing experience, PRECISETECH Equipments has built this machine to automatically fold and precisely cut insulation paper to the required length and shape — all controlled through a simple 7" touch screen panel. See the sample shapes gallery below for the range of profiles this machine can produce. Built in India, backed by years of field-tested reliability.

Manual cutting and folding causes inconsistency, wastage, and slows down production. Our machine eliminates all these issues — delivering precise, repeatable results every time.

Technical Specifications

Application	Motor insulation top paper folding & cutting
Target industry	Motor manufacturers
Creasing range	3mm – 20mm (using different tools on same machine)
Minimum paper width	10mm
Maximum paper width	40mm
Power supply	Available in Single Phase and Three Phase
Control panel	7" touch screen
Manufacturing experience	6+ years
Speed	10 mtrs /min for 100mm length
Country of origin	Vasai, Mumbai — Made in India

Request a Quote → 📞 Call Us

PROCESS

How the Machine Works

Fold first — then cut. Fully automatic sequential operation.

Paper Feed

Insulation paper is automatically fed from the roll into the machine. No manual feeding required.

FOLD FIRST

Folding

Paper is folded as per the required profile — U-fold, L-fold, Z-fold or custom.

Precision Cut

Folded paper is automatically cut to your exact desired length as programmed on the 7" touch screen.

VERSATILE

Multiple Fold Types Available

Multiple fold profiles are available for different motor slot requirements.

⊏

U-Fold

Most commonly used for motor slot liner. Paper forms a U-shape to fit inside the stator slot perfectly.

⌐

L-Fold

Single side fold for specific motor winding applications where one-sided insulation is required.

⌇

Z-Fold

Double fold configuration for applications requiring extra insulation layers in the motor slot.

✦

Custom Fold

Any fold profile as per your specific motor slot dimensions and insulation requirements.

OUTPUT PROFILES

Sample Shapes We Produce

The machine produces a range of top and bottom insulation paper folding and cutting profiles.

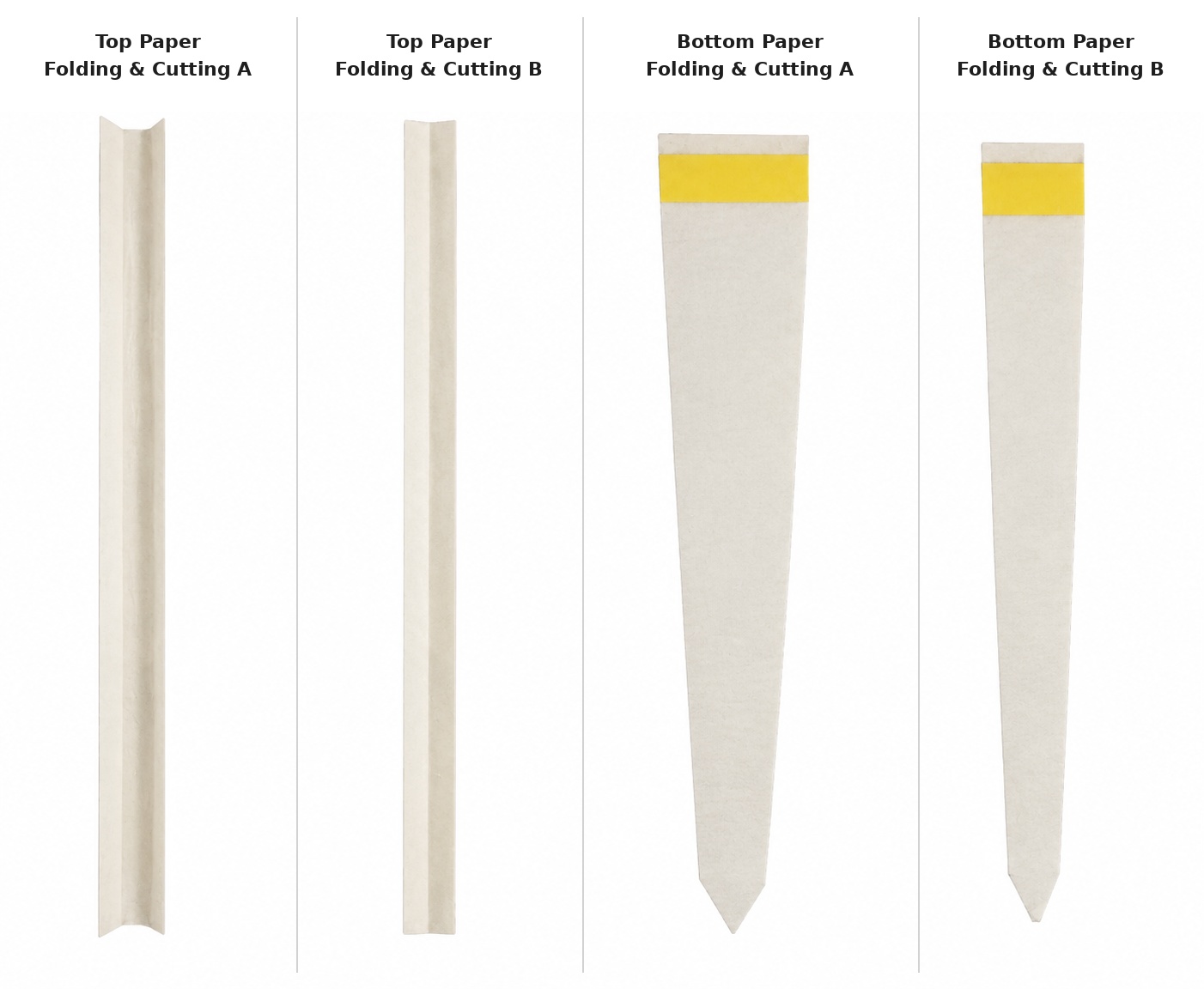

Sample top paper folding and bottom paper folding and cutting shapes produced by the machine

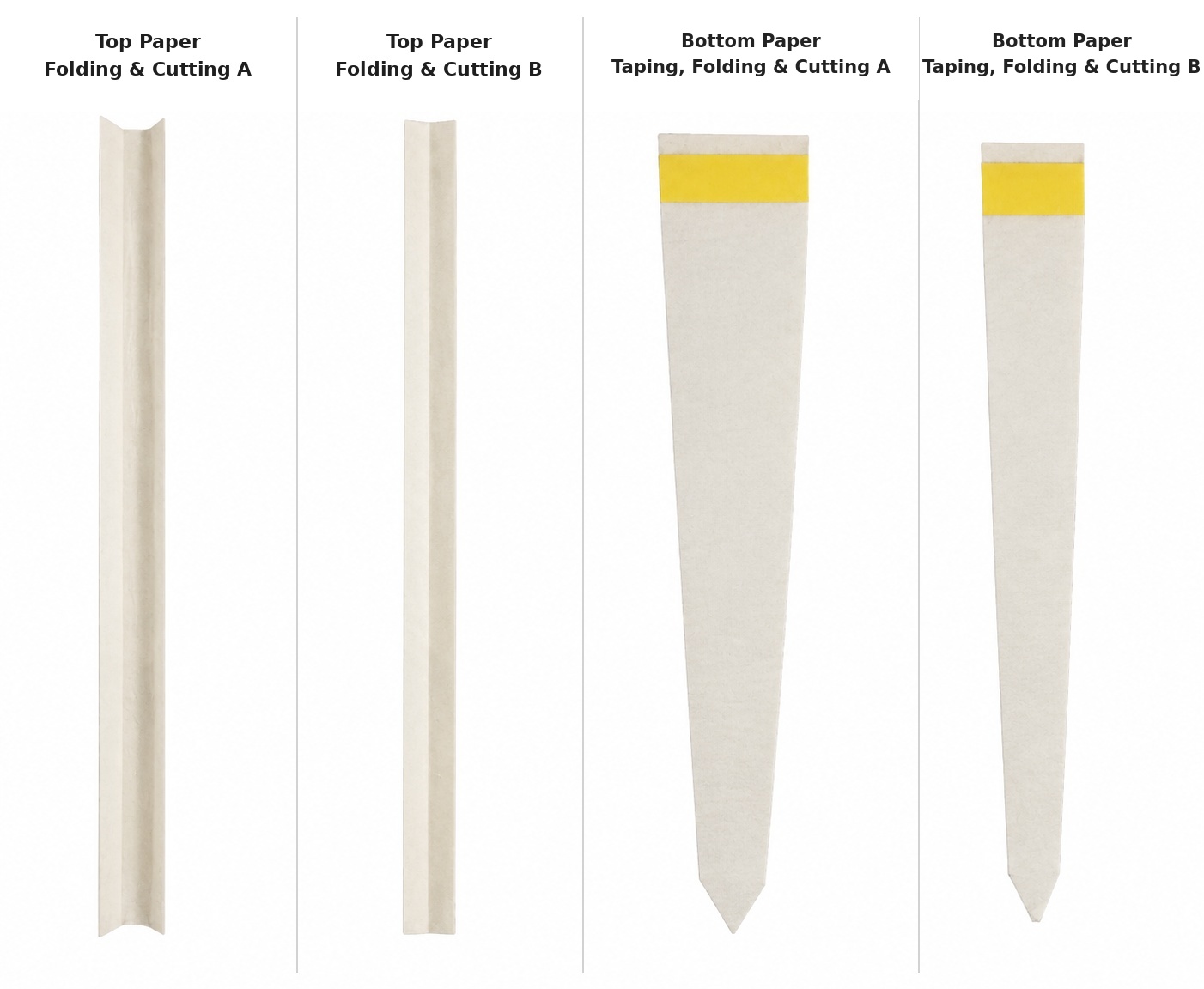

Yellow taping shown on 'Bottom Paper Folding & Cutting' samples is for reference only. Taping is performed on our separate Bottom Paper Taping, Folding & Cutting Machine — a dedicated machine designed specifically for bottom insulation paper. Not included with this machine.

FEATURES

Key Features

✓

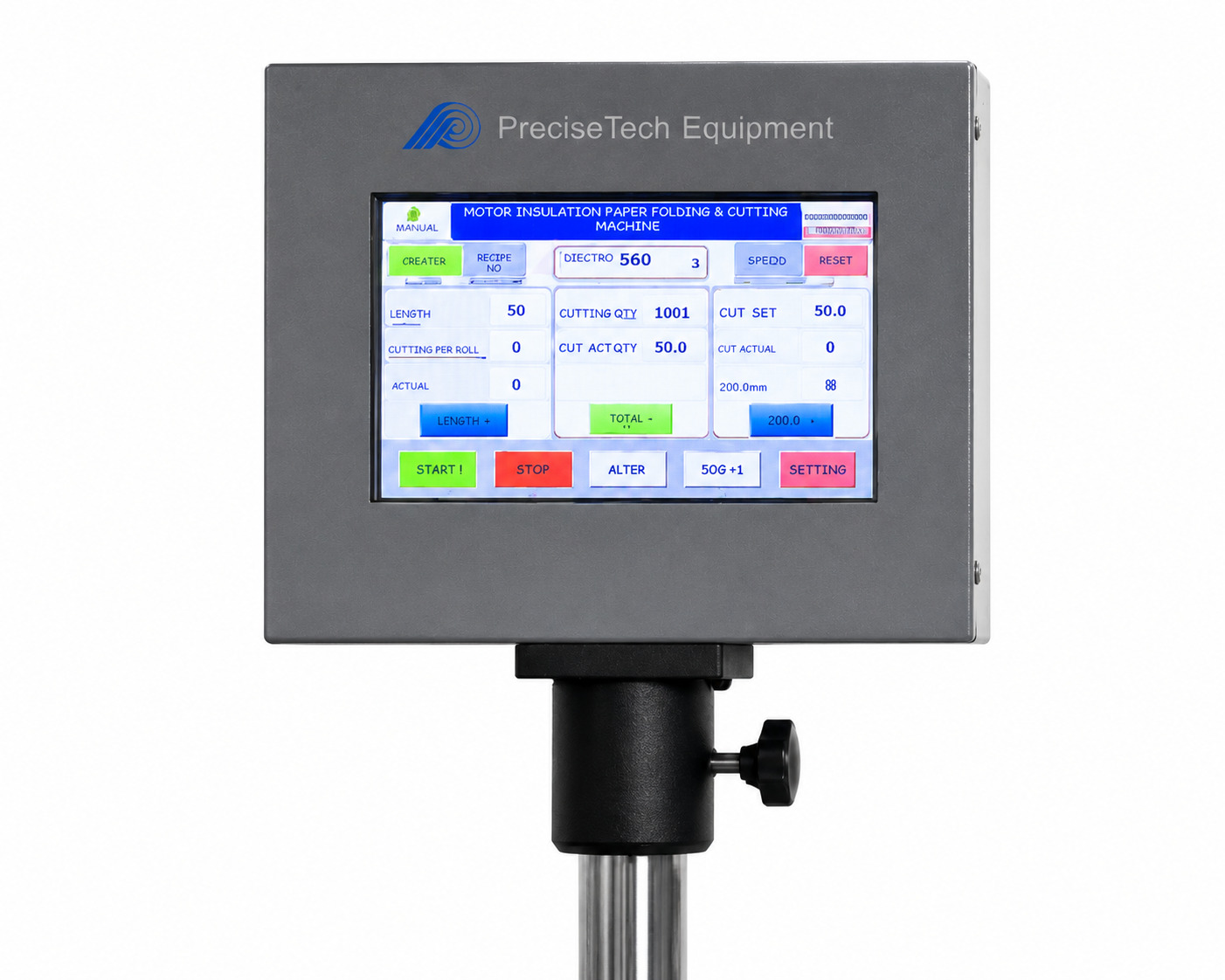

7" HMI Touch Screen with Integrated Control Panel

Simple, intuitive interface. Set fold type, cutting length and production count from one screen.

✓

Fold First — Then Cut Automatically

Sequential automatic operation. Paper is first folded to required profile, then cut to exact length.

✓

Multiple Fold Profiles

U-fold, L-fold, Z-fold and custom profiles available.

✓

Programmable Cutting Length

Set any desired cutting length as per your motor slot size. Consistent accuracy every time.

✓

All Insulation Paper Types Supported

DMD, NMN, Nomex, Polyester film, Fish paper, Kraft insulation paper — all compatible.

✓

Made in India — Pan-India Support

Manufactured at Vasai, Mumbai. Complete installation, training and 12 months after-sales support across India.

APPLICATIONS

Who Is This Machine For?

⚡

Electric Motor Manufacturers

Single phase, three phase, AC, DC motors

💧

Pump Motor Manufacturers

Submersible, centrifugal and industrial pumps

🔋

Generator & Alternator Manufacturers

Industrial and commercial power generation

🔧

Motor Rewinding Workshops

Motor repair and rewinding service centers

🏭

Electrical Equipment OEMs

All electrical machinery manufacturers across India

Compatible Insulation Paper Types

✓ DMD Paper

✓ NMN Paper

✓ Nomex Paper

✓ Polyester Film

✓ Fish Paper

✓ Kraft Insulation

FAQ

Frequently Asked Questions

What is a motor insulation paper folding and cutting machine?

It is an automatic industrial machine that first folds insulation paper in various profiles — U-fold, L-fold, Z-fold or custom — as per the motor slot requirement, and then cuts it to the exact desired length. This paper is then inserted into electric motor stator slots during motor manufacturing to provide electrical insulation.

Does the machine fold first or cut first?

The machine always folds first, then cuts. This is the correct sequence for motor insulation paper — the paper is folded to the required profile first, and then cut to the desired length. The entire process is automatic and sequential.

What fold types does the machine support?

The machine supports multiple fold types including U-fold (slot liner fold), L-fold (single side), Z-fold (double fold) and custom fold profiles as per your specific motor slot dimensions.

Can the cutting length be changed as per motor size?

Yes. The programmable 7" HMI touch screen allows operators to set any desired cutting length as per the motor slot size — quickly and accurately. No special tools required. You can switch between different lengths for different motor sizes easily.

What types of insulation paper can this machine process?

The machine is compatible with all commonly used motor insulation papers including DMD (Dacron-Mylar-Dacron), NMN (Nomex-Mylar-Nomex), Nomex paper, Polyester film, Fish paper and Kraft insulation paper.

Where is this machine manufactured and is after-sales support available across India?

PRECISETECH Equipments manufactures this machine at Vasai East, Mumbai, Maharashtra, India. We provide complete installation, operator training and 12 months after-sales support across India. Contact us on +91 98216 49944 or kedar@preciseequipments.com for a free quote and demo.
